Introduction to Injection Molding and EDM

Injection molding is a cornerstone of modern manufacturing, producing high-precision plastic parts for industries ranging from automotive to consumer electronics. A critical aspect of creating high-quality injection molds is the use of advanced machining techniques, such as Electrical Discharge Machining (EDM). EDM is a non-traditional machining process that uses electrical sparks to remove material, enabling the creation of intricate mold features with exceptional precision. This article explores the role of EDM in injection mold manufacturing, its benefits, and its applications, with insights into how companies like Blector Mold leverage this technology to deliver superior molds.

What is EDM and How Does It Work?

EDM, or Electrical Discharge Machining, involves the use of a controlled electrical spark to erode conductive materials like hardened steel or carbide. The process occurs between a tool electrode (typically copper or graphite) and the workpiece, submerged in a dielectric fluid. The spark discharge melts and vaporizes small amounts of material, creating precise shapes without direct contact, which eliminates mechanical stress and ensures high accuracy.

There are two primary types of EDM used in mold making:

• Sinker EDM: Uses a shaped electrode to form complex 3D cavities or textures, ideal for mold cavities and cores.

• Wire EDM: Employs a thin wire to cut precise 2D profiles, such as parting lines or insert contours.

Why EDM is Essential in Injection Mold Manufacturing

EDM plays a pivotal role in creating high-quality injection molds due to its unique capabilities:

• Complex Geometries:EDM excels at machining intricate shapes, such as deep slots, sharp corners, or complex curves, that are challenging for conventional CNC milling. For example, it’s ideal for creating fine details in mold cavities, such as snap-fit features or textured surfaces for aesthetic parts.

• High-Precision Machining:With sub-micron accuracy, EDM ensures tight tolerances for mold components, critical for producing consistent, high-quality plastic parts. This precision is especially valuable for industries like medical devices or electronics, where dimensional accuracy is non-negotiable.

• Processing Hardened Materials:Injection molds are often made from hardened steels (e.g., P20, H13) or alloys that are difficult to machine post-heat treatment. EDM’s ability to process these materials without regard to hardness makes it indispensable.

• Surface Finish and Texturing:EDM can achieve mirror-like finishes or specific textures (e.g., leather grain, sand-like patterns) directly on the mold surface, reducing the need for additional polishing. This is particularly useful for molds requiring aesthetic or functional surface finishes.

• Mold Repair and Modification:EDM allows precise repairs or modifications to existing molds, such as adjusting cavity dimensions or fixing wear, extending mold lifespan without requiring a full rebuild.

Applications of EDM in Injection Molding

EDM is used in various stages of injection mold manufacturing, including:

• Cavity and Core Machining: Creating precise mold cavities and cores with complex internal features, such as those found in automotive or consumer product molds.

• Micro-Feature Fabrication: Producing small features like venting holes, fine text, or micro-gates, critical for precision molds.

• Texturing: Applying specific surface textures (e.g., VDI 3400 or Mold-Tech standards) for aesthetic or functional purposes, such as improving grip or hiding defects.

• Prototyping and Low-Volume Molds: EDM’s flexibility makes it ideal for creating prototype molds or low-volume production tools where precision is critical.

Advantages of EDM in Mold Making

• Versatility: Works on any conductive material, regardless of hardness, making it suitable for a wide range of mold materials.

• Non-Contact Process: Eliminates mechanical stress, reducing the risk of material deformation or cracking.

• Automation Potential: EDM is highly predictable, making it easier to automate for unattended operations, improving efficiency.

• High Surface Quality: Modern EDM machines can achieve fine finishes, sometimes eliminating the need for secondary polishing.

Challenges and Considerations

While EDM is powerful, it has limitations:

• Processing Speed: EDM is slower than CNC machining for large material removal, so it’s typically used for finishing or complex features.

• Electrode Costs: Custom electrodes (e.g., copper or graphite) add to production costs and require careful design.

• Surface Post-Processing: For some applications, EDM surfaces may require polishing to achieve specific textures or gloss levels.

How Blector Mold Utilizes EDM for Superior Results

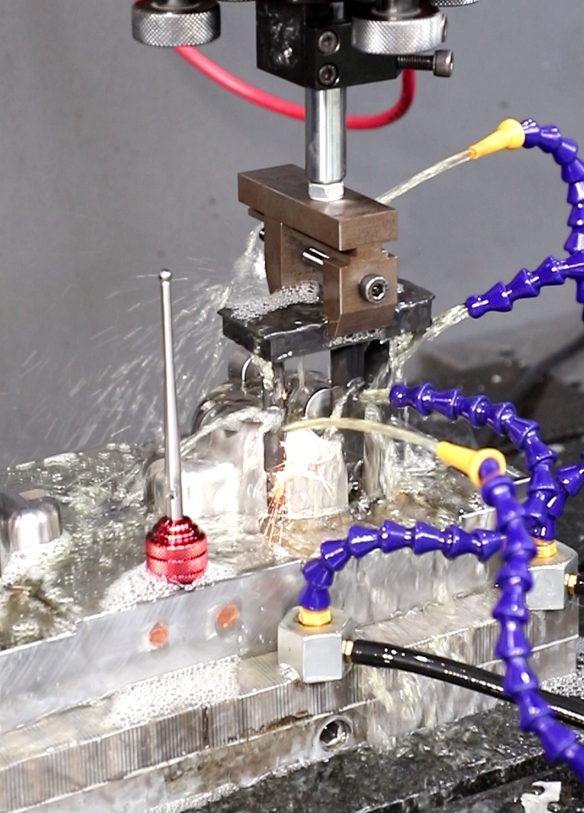

At Blector Mold, EDM is a cornerstone of their precision mold manufacturing process. With advanced sinker and wire EDM capabilities, Blector Mold produces high-quality injection molds for industries such as automotive, electronics, and medical devices. Their expertise in EDM allows them to create complex mold geometries, achieve mirror-like finishes, and deliver molds with exceptional durability and precision. By integrating EDM with CNC machining and other advanced techniques, Blector Mold ensures efficient production and high-quality outcomes, meeting the stringent demands of their global clients.

Tips for Optimizing EDM in Mold Design

• Design for EDM Early: Incorporate EDM-compatible features (e.g., sharp corners, deep cavities) during the mold design phase to streamline production.

• Select Appropriate Electrodes: Choose copper for fine details or graphite for cost-effective, larger-scale EDM operations.

• Combine with CNC Machining: Use CNC for roughing and EDM for finishing to balance speed and precision.

• Consider Surface Finish Needs: Plan for post-EDM polishing if specific textures or high-gloss finishes are required.

Electrical Discharge Machining is a game-changer in injection mold manufacturing, enabling the creation of complex, high-precision molds that meet the demands of modern industries. Its ability to handle hardened materials, produce intricate geometries, and achieve superior surface finishes makes it indispensable. Companies like Blector Mold exemplify how EDM can be leveraged to deliver top-tier injection molds, ensuring quality and efficiency. For manufacturers seeking precision and reliability, EDM remains a vital tool in the mold-making arsenal.
