Precision Mold Alignment with Red Lead and Hammer Tapping

In precision manufacturing, mold alignment is the cornerstone of producing high-quality components, especially in the fast-growing electric vehicle (EV) industry ,Automative , home applicance, . Misaligned molds can cause defects like flash or leaks, leading to costly rework and delays. Red lead testing, followed by hammer tapping, is a time-tested method to ensure molds align perfectly, delivering flawless parts. This article explores the importance of these techniques and highlights how Blector Mold, a leading mold manufacturer, integrates them with advanced technology to meet the demands of modern industries.

The Importance of Mold Alignment

Molds are critical for shaping components in industries like automotive, electronics, and electric vehicles. For example, EV battery casings and motor parts require micro-level precision to ensure performance and safety. Poor alignment can result in:

• Defects: Flash (excess material) or incomplete filling, compromising part quality.

• Increased Costs: Material waste and additional labor for rework.

• Reduced Mold Life: Misalignment causes excessive wear, shortening mold durability.

Red lead testing and hammer tapping address these issues by verifying and optimizing mold fit before production begins.

How Red Lead Testing Works

Red lead, a bright red pigment (often minium or similar compounds), is applied as a thin layer to one mold’s mating surface. When the mold is closed, areas of contact compress or transfer the red lead, creating a visual map of alignment. Non-contact areas, where red lead remains untouched, indicate gaps or misalignment requiring adjustment.

Benefits of Red Lead Testing

• Visual Clarity: Clear patterns show contact points and gaps, simplifying diagnosis.

• Cost-Effective: Requires minimal equipment, ideal for manufacturers of all sizes.

• Efficient: Quickly identifies issues, reducing downtime and rework.

The Role of Hammer Tapping

After applying red lead, hammer tapping simulates the pressures molds face during production, such as in injection molding or die casting. This step ensures the mold performs reliably under real-world conditions. Key purposes include:

• Simulating Production Stress: Tapping replicates the forces of high-pressure molding, verifying that alignment holds under load.

• Adjusting Contact Points: Light tapping can slightly reposition components like alignment pins, improving fit and reducing gaps.

• Releasing Internal Stress: Tapping helps relieve stresses from machining or assembly, enhancing mold stability and longevity.

Best Practices for Hammer Tapping

• Controlled Force: Use light, even taps to avoid damaging the mold.

• Iterative Checks: Reinspect red lead patterns after tapping and adjust as needed.

• Complementary Tools: Combine with feeler gauges for precise gap measurement.

Step-by-Step Process

1. Clean Mold Surfaces: Remove oil, dust, or debris from mating surfaces.

2. Apply Red Lead: Coat one mold surface evenly with a thin layer of red lead.

3. Close the Mold: Apply appropriate pressure to simulate production conditions.

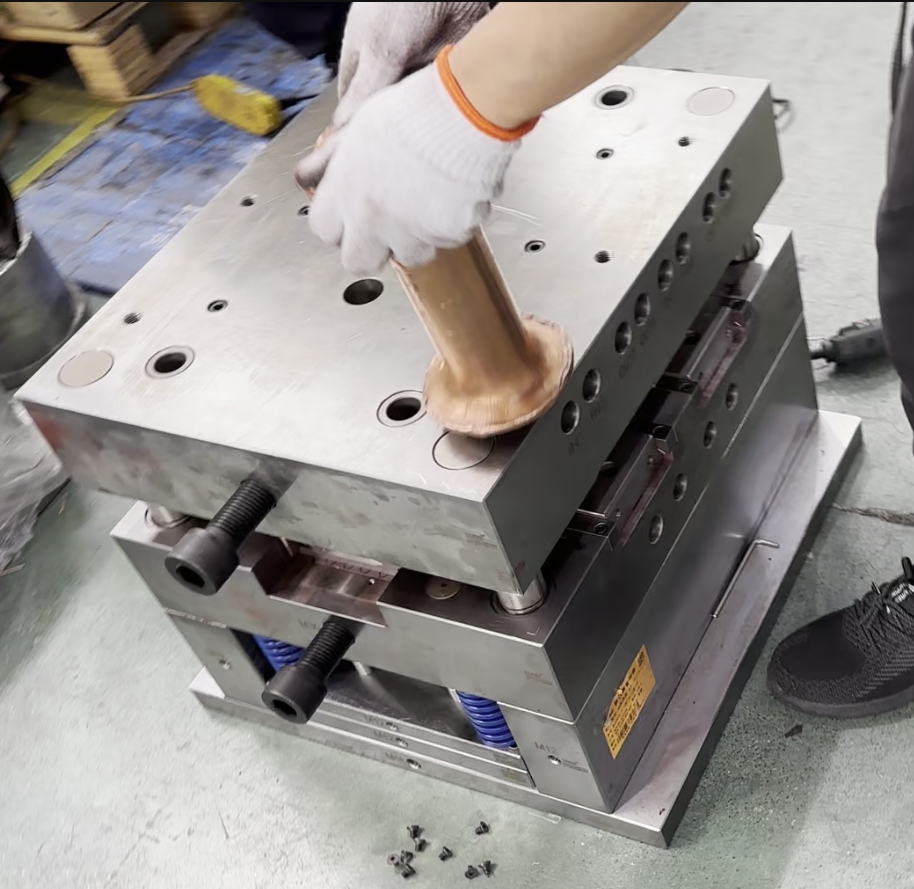

4. Tap the Mold: Use a mold hammer to lightly tap, mimicking operational stress.

5. Inspect Red Lead Patterns: Check for uniform transfer to identify contact areas or gaps.

6. Adjust and Repeat: Grind or adjust misaligned areas and repeat until full contact is achieved.

Blector Mold: Precision and Innovation

Blector Mold is a trusted name in mold manufacturing, particularly for electric vehicle components,Automotive , industrial , consumer products, home appliances, electronic accessories. With over 435 patents and ISO 9001 certification, their facilities in Changzhou and Shenzhen leverage Siemens and Yamaha automation for unmatched precision. Serving 70% of the EV industry, including brands like NIU, HERO, YADEA, and others, Blector Mold excels in:

• Mold Design and Manufacturing: Creating high-precision molds for complex EV parts.

• Comprehensive Services: Offering mold design, production, and single-color injection molding.

• Global Reach: Three branches and five marketing centers ensure responsive support.

By integrating red lead testing and hammer tapping with advanced CNC machining and simulation tools, Blector Mold ensures molds meet the highest standards, reducing defects and boosting efficiency.

Applications in Electric Vehicle Manufacturing

The EV industry demands molds with micro-level precision for components like battery casings and motor housings. Red lead testing and hammer tapping ensure these molds deliver consistent, defect-free parts. Blector Mold’s expertise in these techniques, combined with advanced technology, makes them a preferred partner for EV manufacturers seeking reliable, high-quality molds.

Conclusion

Red lead testing and hammer tapping are essential for achieving precision mold alignment, ensuring high-quality parts, reduced waste, and extended mold life. These techniques are particularly critical in the electric vehicle industry, where precision is non-negotiable. Blector Mold combines these proven methods with cutting-edge technology to deliver superior molds for industries worldwide. Visit www.blectormold.com today to learn how their expertise can elevate your manufacturing process!
